ZS-800 Series Post CMP Cleaning Solutions

半导体铜制程、CMP后清洗剂，替代ATMI ESC-784英特格

深圳市芯泰科光电有限公司

许总 15220133370 QQ:332767299 0755-28190294

深圳市芯泰科光电有限公司，创立于2014年，是一家服务于微电子领域的产品贸易及技术服务提供商。我们已经成为国内微电子制程领域和相关大学研究所信赖的合作伙伴；公司秉持以忠诚态度对待新旧客户，以客户满意为导向，提供优质高效率的专业服务，提供产品行销及技术支援解决方案。我们目标是成为一家新材料应用技术推广服务的专业供应商。

ZS-800 Series Post CMP Cleaning Solutions

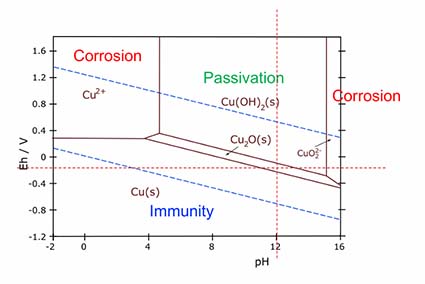

Pourbaix diagram for copper in uncompld mdia

Redox pH condition are critical to Cu surface treatment flrmulation design!

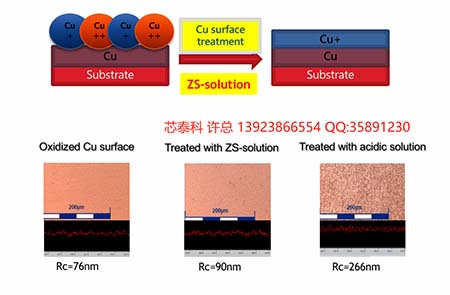

Controlled treatment to oxidized Cu surface

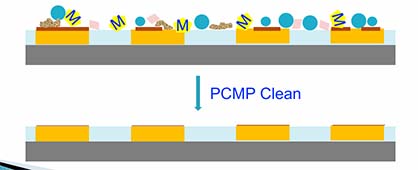

Critical to PCMP Cleaning Solution Design

 1. Particle removal: abrasive materials slurry

 2. Organic residue removal: polymers, BTA, ligs….

 3. Metal complex inorganic residue removal

 4. Safe to other film materials: SiOx, SiN, dielectric…..

 5. Cu corrosion inhibition

 6. Cu surface conditioning

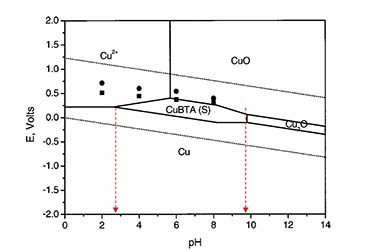

Pourbaix diagram for copper-BTA system in water

Cu-BTA compled solid is s between pH3~10. Cleaning solutions with

pH higher than 10 or lower than 3 are capable to remove Cu-BTA complex!

 ZS-800 Series Design Concepts

1. Buffered high pH solution

 2. Reducing agent to control solution electrochemical property

 3. Metal chelators to remove metal oxides/ions

 4. Surfactants to remove organic inorganic residues

 5. Corrosion inhibitors to minimize Cu corrosion

 6. Concentrated aqueous solution for cost effectiveness

TMAH/H2O                                 pH adjuster, buffered aqueous, Cu-BTA complex removal

 (KOH)

 Reducing agent                         Electro-potential control, buffer, Cu reducing

 Metal chelator                           Metal oxide/ion removal, Cu-BTA complex removal

 Surfactant                                 Organic inorganic residue removal, surface wetting

 Corrosion                                   Cu  corrosion control surface conditioning

Inhibitor

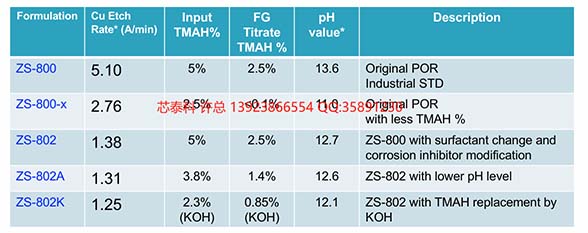

ZS-800 Series Solution Comparison

1. Dilution ratio can be tailor to customer process need.

 2. CIP formulation with same concept can be tailor to customer requirements.

3. Actual TMAH% in Finished Good can be determined through titration.

 4. ZS-800 equivalent POR reported actual TMAH% not input value.

 5. ZS-802 formulation adopted an optimal buffer system to achieve lower Cu etch rate.

 6. Local manufacturing in Taiwan.

ZS-802 Series pH Variation

1. Lowest good TMAH input amount of ZS-802 is 3.3%.

 2. TAMH input amount is determined to be 3.8% for ZS-802 formulation design.

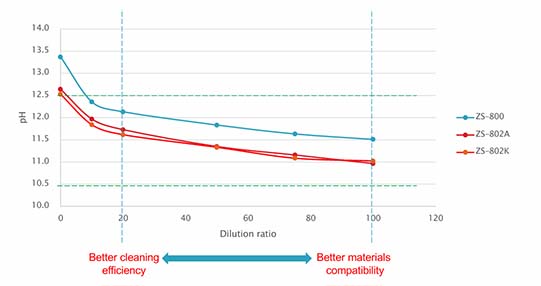

CEMI ZS-800 Dilution Ratio & Application Window

1. Excellent buffer property upon dilution is needed to ensure good performance.

 2. ZS-800 series cleaning solution can be used at >100X dilution.

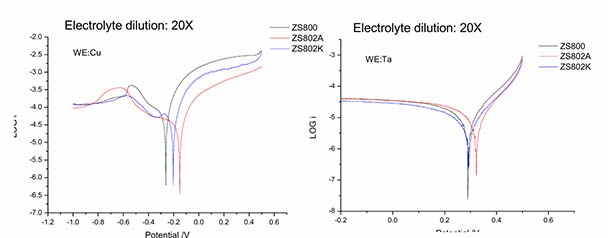

Tafe Plot Using ZS-800 Series as Electrolyte

Coopper has lower corrosion rate in ZS-802&ZS-802K than ZS-800(POR).

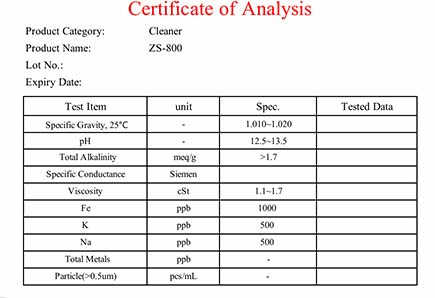

ZS-800 Series Specs & CoA
